Home / Products / Acoustic Panels / Acoustic Baffles

Acoustic Baffle Systems

A complete collection of acoustic baffle solutions. Ballesta U-shaped, V-shaped, and custom baffle profiles feature internal cavities that can be precision-perforated, fitted with acoustic fleece, or filled with sound-absorbing material for superior noise control in open-ceiling environments.

Product Collection

A Complete Baffle Collection

Acoustic baffles aren't a single product - they're a transformation applied across Ballesta's U-shaped, V-shaped, and custom baffle range. Unlike flat linear baffles, U/V-shaped profiles have internal cavities that can be precision-perforated, fitted with acoustic fleece backing, or filled with sound-absorbing material to achieve targeted NRC ratings. The result: the same architectural baffle design you planned, with the acoustic performance your project requires.

Because baffles are suspended vertically in an open ceiling plane, they absorb sound from both sides - offering inherently more acoustic surface area per square meter than flat ceiling panels.

Baffle Systems

Available as Acoustic Baffles

Click any system below to learn more. U-shaped and V-shaped baffles with internal cavities are ideal for acoustic treatment - each can be perforated, fleece-backed, or cavity-filled for targeted NRC performance.

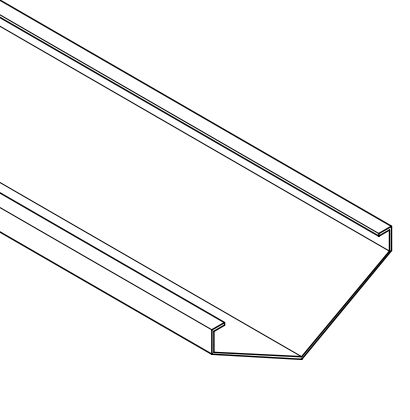

Ballesta BV-Type U-Shaped Baffle - Acoustic Version

BV-Type Baffle

V-bottomed U-shaped baffle with dual angled faces - each side can be perforated and fleece-backed for maximum acoustic efficiency. The V-shaped base creates directional sound diffusion. Ideal for auditoriums, lecture halls, and transit spaces.

Learn More →
Ballesta Omega-Type U-Shaped Baffle - Acoustic Version

Omega-Type Baffle

Rounded Omega-profile baffle with gentle curved sides. Perforated curved surfaces provide excellent multi-directional sound absorption. Ideal for retail spaces, restaurants, and hospitality environments where aesthetic warmth matters.

Learn More →

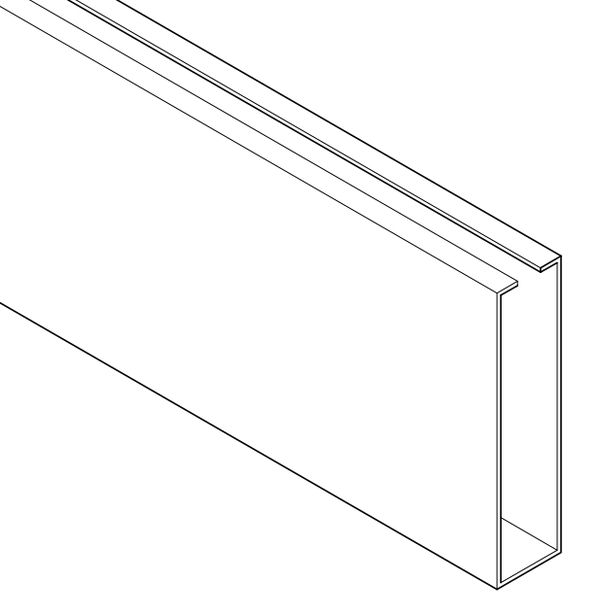

Ballesta U-Type U-Shaped Baffle - Acoustic Version

U-Type Baffle

Classic square-bottomed U-shaped baffle with flat vertical sides. Perforated faces with fleece backing or filled cavity for enhanced absorption. The enclosed U-channel can be filled with acoustic insulation material. Ideal for gymnasiums, sports halls, and industrial spaces.

Learn More →

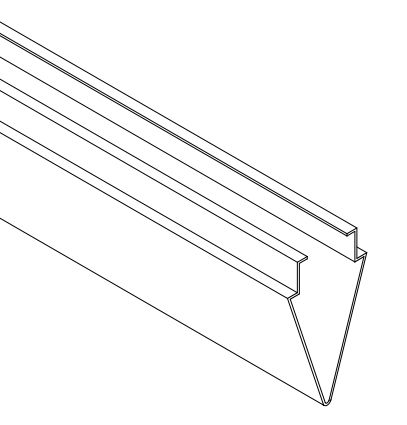

Ballesta VH-Type Baffle - Acoustic Version

VH-Type Baffle

Deep-profile V-shaped baffle with tall vertical sides and angled base. Maximum internal cavity depth allows for generous acoustic filling. Excellent low-frequency absorption. Ideal for concert halls, recording studios, and noise-critical environments.

Learn More →
Acoustic Options

Perforation, Fleece & Cavity Filling

Acoustic baffles achieve sound absorption through three complementary methods. The same options apply across all baffle types - linear, U-shaped, V-shaped, and custom designs.

Perforation Patterns

All baffle types can be precision-perforated on one or both faces. Standard round holes in staggered arrangement. Custom patterns and micro-perforation available for special acoustic and aesthetic requirements.

Hole DiameterPatternOpen AreaTypical Use
0.8mm (micro)Staggered round~3-5%Nearly invisible, clean look
1.8mmStaggered round~15%Standard acoustic
2.0mmStaggered round~18%Standard acoustic
2.5mmStaggered round~23%High absorption
3.0mmStaggered round~28%Maximum absorption

Acoustic Fleece Backing

A black acoustic fleece pad is heat-bonded to the back of each perforated baffle face. Sound waves passing through perforation holes are absorbed by the fleece. For U-shaped and V-shaped baffles, fleece can be applied to one or both sides independently.

ConfigurationNRC RatingApplication
Single-side perf + fleeceNRC 0.50-0.65Light acoustic, offices
Double-side perf + fleeceNRC 0.65-0.80Standard acoustic, schools
Perf + fleece + cavity fillNRC 0.75-0.90+High performance, auditoriums
Non-perforated baffleNRC 0.05-0.10Visual-only, wet areas

Cavity Filling (U/V Shapes)

U-shaped and V-shaped baffles have an internal cavity that can be filled with sound-absorbing materials such as acoustic fiberglass or mineral wool. The filler is wrapped in acoustic fabric to contain fibers. This provides significantly higher low-frequency absorption compared to perforation + fleece alone.

Filling MaterialFrequency RangeNRC Boost
Acoustic fiberglass (24kg/m3)Broadband+0.15-0.25
Mineral wool (48kg/m3)Mid-low freq+0.20-0.30
PET acoustic foamMid-high freq+0.10-0.20
Why Baffles?

Inherent Acoustic Advantage

Unlike flat ceiling panels, suspended baffles offer unique acoustic benefits that come from their geometry and installation method.

Dual-Sided Absorption

Each baffle absorbs sound from both faces - roughly double the acoustic surface area per ceiling square meter compared to flat panels. Sound reaches all surfaces from any direction.

Open Plenum Advantage

Sound waves travel freely between and around baffles, allowing multi-directional absorption. With closed ceilings, sound enters through one face. With baffles, both sides plus the cavity interior absorb.

Reverberation Control at Height

Baffles intercept sound at the ceiling plane before reverberation builds up. Exceptionally effective in tall spaces - atriums, gymnasiums, transit halls - where flat panels are too far from the sound source.

Sabin Efficiency

Acoustic performance measured in Sabins per unit. Because baffles expose both sides, per-unit Sabin value is significantly higher than flat absorbers. Fewer baffles needed to achieve the same room acoustics.

Why Choose Acoustic Baffles

Six Key Advantages

Ballesta acoustic baffle systems deliver reliable acoustic performance across all baffle types. The same perforation, fleece, and filling technologies work across linear, U-shaped, V-shaped, and custom designs.

Complete Shape Flexibility

Focus on baffle shapes with internal cavities for acoustic treatment. BV-Type for directional sound, Omega-Type for rounded warmth, U-Type for maximum cavity volume, VH-Type for deep-profile absorption. Each available with perforation, fleece, or cavity filling.

Dual-Sided Acoustic Surface

Every baffle absorbs sound from both faces - roughly 2x the acoustic surface area per ceiling square meter compared to flat panels. Open spacing between baffles allows sound to reach all surfaces from any direction.

Three Acoustic Enhancement Paths

Precision perforation + acoustic fleece backing (standard acoustic), cavity filling with fiberglass/mineral wool (high-performance acoustic), or micro-perforation (smooth appearance). Combine methods for NRC up to 0.90+.

Fire Safety & Durability

All aluminum acoustic baffles are non-combustible with Class A fire rating per ASTM E84 and EN 13501-1. Acoustic fleece and filling materials are also fire-rated. No toxic fumes in fire conditions.

Unlimited Finish Combinations

Powder coating in any RAL/Pantone color, PVDF fluorocarbon, anodizing (natural, champagne, bronze, black), and wood-grain transfer. Acoustic baffles available in any finish - perforation and fleece do not limit color or texture options.

Seamless Design Integration

Acoustic baffles use the same suspension hardware, spacing, and installation methods as standard baffles. Acoustic versions are drop-in replacements - no structural or layout changes needed to upgrade from visual baffles to acoustic baffles.

Applications

Ideal for Open Ceiling Spaces

Ballesta acoustic baffle systems are specified across a wide range of noise-sensitive environments where open ceilings, high spaces, and architectural impact are equally important.

Open-Plan Offices
Airport Terminals
Atriums & Lobbies
Retail Malls
Hotel Lobbies
Conference Rooms
Gymnasiums & Sports Halls
School Auditoriums
Restaurants & Cafeterias
Transit Stations
Exhibition Halls
Recording Studios
Technical Specifications

Engineering Parameters

Ballesta acoustic baffle specifications across all types. Custom dimensions and acoustic configurations available upon request.

Parameter Specification
MaterialAluminum Alloy AA1100, AA3003 (H14/H24 temper)
Baffle Thickness0.8mm - 1.2mm (standard); up to 2.0mm for deep profiles
Standard Lengths1000mm - 6000mm (custom lengths available)
Baffle Heights50mm - 400mm (depends on type: I, S, BV, Omega, U, VH)
Surface FinishesPolyester powder coating (RAL), PVDF fluorocarbon, anodizing, wood grain transfer
Color OptionsFull RAL color chart; standard RAL 9003 (Signal White), RAL 9006 (White Aluminium), custom colors
SuspensionConcealed carrier track + aircraft cable; surface-mount bracket options
PerforationAvailable: 0.8mm (micro), 1.8mm, 2.0mm, 2.5mm, 3.0mm round hole; open area 3-28%
Acoustic PerformanceNRC up to 0.65 (single-side fleece), 0.80 (double-side fleece), 0.90+ (with cavity fill)
Fire RatingClass A (non-combustible) per ASTM E84, EN 13501-1
InstallationSuspended from carrier track with adjustable aircraft cables; removable individually
SpacingStandard 100-200mm gap between baffles; custom spacing for acoustic targeting
Downloads

Technical Resources

Download technical datasheets for Ballesta acoustic baffle systems.

Acoustic Baffle TDS

PDF - 166 KB
FAQ

Frequently Asked Questions

Which baffle types can be made into acoustic baffles?

Baffles with internal cavities - BV-Type, Omega-Type, U-Type, and VH-Type - are specifically designed for acoustic treatment. Their enclosed U/V-shaped profiles can be perforated, fleece-backed, and/or cavity-filled with sound-absorbing material. Linear flat-profile baffles (I-shape, S-shape) do not have the internal cavity required for acoustic filling and are not recommended for acoustic applications. Contact us for project-specific guidance on baffle selection.

What is the difference between acoustic fleece backing and cavity filling?

Acoustic fleece is a heat-bonded sound-absorbing pad attached to the back of perforated baffle faces - sound passes through holes and is absorbed by the fleece. Cavity filling involves placing fiberglass or mineral wool inside U-shaped or V-shaped baffle cavities, wrapped in acoustic fabric. Cavity filling provides stronger low-frequency absorption and higher overall NRC, but is only available on shapes with an internal cavity (U, BV, Omega, VH types).

What NRC ratings can acoustic baffles achieve?

NRC varies by configuration. Single-side perforated + fleece achieves NRC 0.50-0.65. Double-side perforated + fleece achieves NRC 0.65-0.80. Double perforation + fleece + cavity filling achieves NRC 0.75-0.90+. Actual NRC depends on baffle type, perforation pattern, fleece grade, and cavity depth. We provide project-specific acoustic calculations.

Why are baffles inherently better than flat ceiling panels for acoustics?

Baffles absorb sound from both sides - roughly double the acoustic surface area per ceiling square meter. The open plenum between baffles allows sound to reach all surfaces from any direction. This makes baffles particularly effective in tall spaces (atriums, gyms, transit halls) where flat ceiling panels would be too far from the sound source.

Are acoustic baffles fire-rated?

Yes. All Ballesta aluminum baffles are non-combustible with Class A fire rating per ASTM E84 and EN 13501-1. The acoustic fleece backing and cavity filling materials are also fire-rated. No toxic fumes are emitted in fire conditions.

Can I mix acoustic and non-acoustic baffles in the same installation?

Yes. Perforated/fleece-backed baffles and standard non-perforated baffles use the same suspension hardware, carrier tracks, and spacing. This allows targeted acoustic treatment - acoustic baffles in noise-critical zones and standard baffles elsewhere - without changing the visual rhythm or layout.

What finishes are available for acoustic baffles?

All standard Ballesta finishes apply: powder coating in any RAL or Pantone color, PVDF fluorocarbon, anodizing (natural, champagne, bronze, black), and wood-grain transfer printing. Perforation, fleece, and filling do not limit finish options. Both faces of the baffle can have the same or different colors.
