Name: Ballesta S-Shape Baffle Ceiling
Brand: Ballesta Metal
Availability: InStock

Product Overview

S-Shape Baffle Ceiling

The Ballesta S-Shape Baffle Ceiling is a single-blade aluminum linear baffle system formed from one-piece aluminum sheet (0.6-0.7mm thick). Each blade features an integrated snap-fit clip profile that engages directly with the dedicated steel baffle keel - simply push the blade upward from below and it clicks into place. No threading, no tools, no clips, and no separate framing required.

Panel joints offer two design options: visible-edge seams for a structured grid look, or seamless integration where each panel sits flush against the next for a continuous mesh-only appearance. Panel sizes are fully customizable; standard sizes include 1250×2200mm, 1100×1250mm, and 1000×1700mm, with a standard thickness of 1.5mm aluminum. Ideal for large-scale commercial interiors where mesh aesthetics, design flexibility, and fast installation are key requirements.

Key Advantages

Why Choose S-Shape?

One-Piece Snap-Fit Blade Design

Each S-Shape baffle blade is formed from a single sheet of aluminum (0.6-0.7mm thick) with an integrated snap-fit clip profile. The one-piece construction ensures consistent dimensions, eliminates weak points, and the clip profile engages directly with the keel - no frames, no attachments, no assembly required.

Tool-Free Snap-Fit Installation

Each S-Shape blade clips directly onto the dedicated steel keel from below - simply push the blade upward and it snaps into place. No threading from the end, no clips to press, no screws or special tools required. Blades can be installed or removed individually from below, making the system exceptionally fast for large-area installations and easy for ongoing service access.

Flexible Blade Height Combinations

Different blade heights - 100mm, 150mm and 200mm - can be mixed within the same ceiling plane to create dynamic wave, stepped, or graduated effects. Each height uses a matching snap-fit keel profile, so specifiers can vary the visual rhythm across zones without changing the underlying suspension system.

Economical & Fast to Install

Panel dimensions are fully customizable to match project requirements. Standard sizes: 1250×2200mm, 1100×1250mm, and 1000×1700mm. Custom widths, lengths, and mesh opening patterns are available on request.

Installation Reference

Panel Installation Diagram

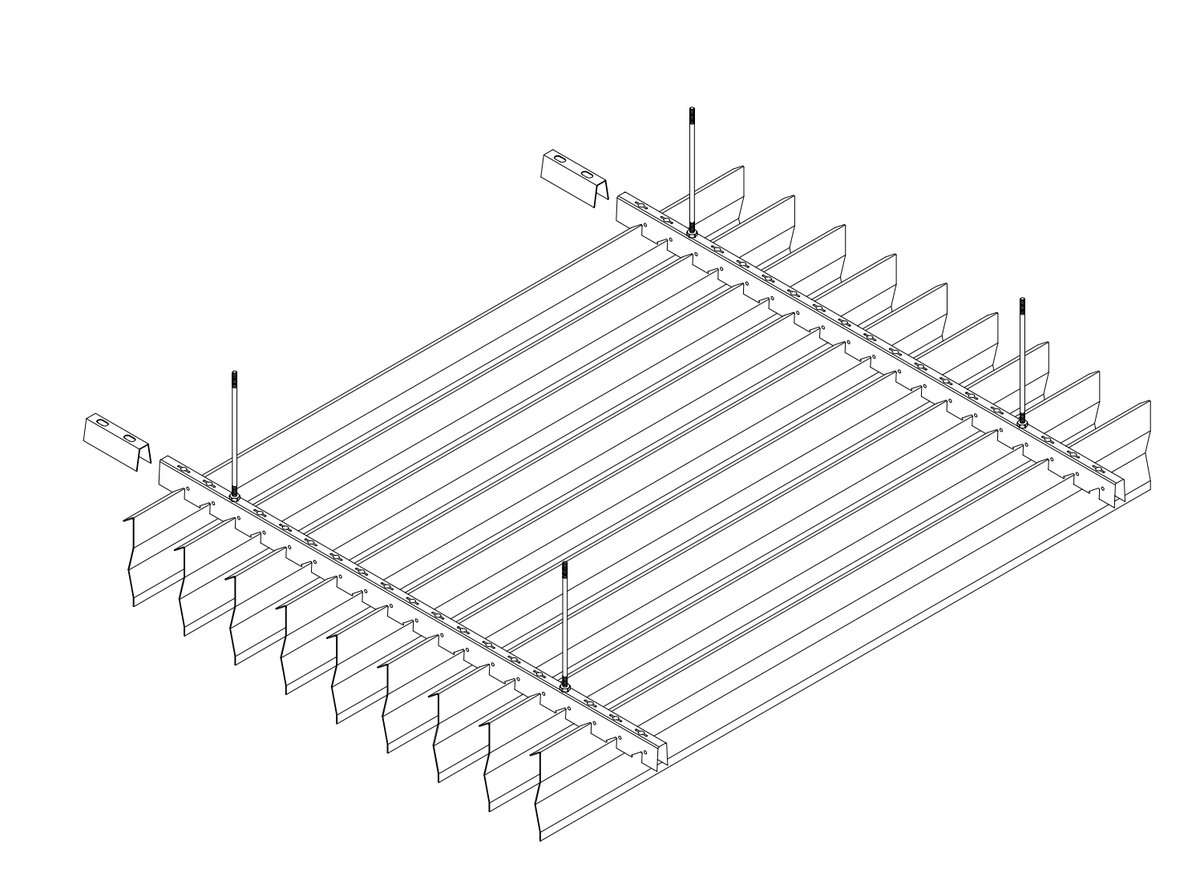

S-Shape Baffle Ceiling Installation Diagram

Technical Specifications

S-Shape Baffle Specifications

Detailed specifications for the Ballesta S-Shape linear baffle ceiling system.

Parameter	Specification
Product Type	S-Shape Linear Baffle (snap-fit single-blade aluminum)
Blade Heights	100mm, 150mm, 200mm
Standard Length	≤4000mm
Panel Thickness	0.6–0.7mm (AA3000 series aluminum)
Spacing Between Blades	Adjustable (typically = blade height)
Open Area Ratio	50–70%
Weight	2–5 kg/m²
Mounting System	Dedicated steel snap-fit baffle keel (blade clips from below)
Suspension Type	Hanger rods + dedicated steel baffle keel (no main tees)
Finish	Powder coating, Wood grain transfer
Color Options	All RAL colors, custom wood grains
Fire Rating	Class A1 (non-combustible, EN 13501-1 / ASTM E84)
Acoustic Performance	Acoustic infill or perforated options available

Key Features

Designed for Performance

Clean Linear Aesthetic

The parallel blade layout creates a strong linear rhythm that visually extends interior space. S-Shape blades present a clean, uniform edge from every angle - ideal for concourses, corridors, retail zones, and open-plan environments where directional orientation and visual flow matter.

Rapid Snap-Fit Assembly

Unlike thread-through or s-shape systems, S-Shape blades clip directly onto the keel from below - no need to access blade ends or slide along the keel. Each blade can be installed independently, and a two-person crew can achieve significantly faster installation rates, especially in tight ceiling voids where end-access is limited.

Easy Removal & Service Access

Individual blades can be unsnapped and removed from below without disturbing adjacent blades or the suspension keel. This provides full access to ceiling voids for cabling, HVAC, fire safety systems, and ongoing maintenance - no special tools needed. Reinstallation is as simple as pushing the blade back into place.

Mixed-Height Wave Effects

By combining 100mm, 150mm and 200mm blade heights within a single ceiling plane, architects can create dynamic wave, stepped, or sculptural effects. Each blade height uses a matching snap-fit keel, so the transition between heights is structurally seamless. Compatible with all standard finishes, lighting, and sprinkler integration.

System Components

What's Included

Complete system components for the S-Shape linear baffle ceiling system.

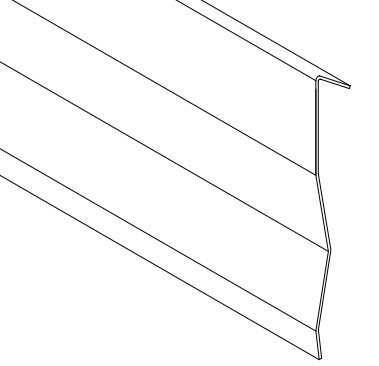

S-Shape Baffle Blade

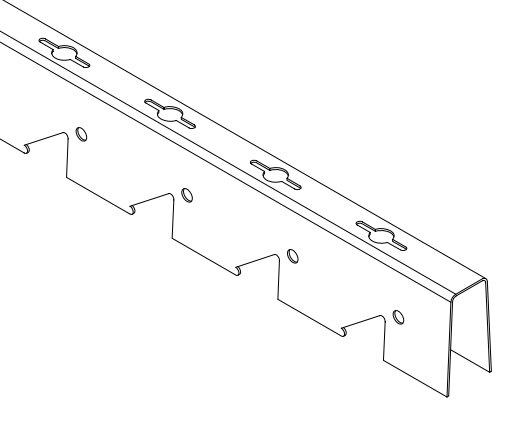

Baffle Keel

Keel Connector

Rod

Installation

Installation Steps

Standard installation sequence for the S-Shape baffle ceiling system.

1

Install Hanger Rods

Secure hanger rods from the overhead structure at the specified spacing. Ensure rods are vertically plumb and anchored securely into structural steel or concrete slab.

2

Install the Dedicated Baffle Keel

Attach the dedicated steel snap-fit baffle keel to the hanger rods at the required position. The keel serves as the blade clip guide - no separate main tees or cross tees required.

3

Snap-Fit Blades from Below

Press each S-Shape blade upward from below - the integrated snap-fit clip engages directly with the keel. Blades click into place securely and can be removed individually for service access. No tools, no clips, no end-access required.

4

Level the Keel and Blades

Adjust the entire assembly - keel height and blade alignment - to achieve a precise horizontal plane. Verify alignment across the grid and ensure all blades are seated uniformly for a consistent visual rhythm.

Applications

Ideal for Large Spaces

S-Shape baffle ceiling is ideal for open-plan commercial, transit and public spaces where linear aesthetics and fast installation matter.

Airport Terminals & Concourses

Metro & Railway Stations

Shopping Malls & Retail Atriums

Office Building Lobbies

Hotel Entrance & Reception

Conference & Exhibition Centers

Educational Campus Buildings

Sports & Fitness Venues

Available Finishes

Blade Finishes

S-Shape baffle blades are finished with durable powder coating. Available in any RAL color plus a range of realistic wood grain transfers.

Powder Coating

Durable, uniform finish, wide RAL color range

Wood Grain Transfer

Realistic wood textures, UV-resistant

Color Customization

Any RAL / NCS / Pantone color matched

UV-Resistant Coating

Weather-resistant, color stable

Application Scenarios

Application Projects

Ideal applications for the Ballesta S-Shape baffle ceiling system.

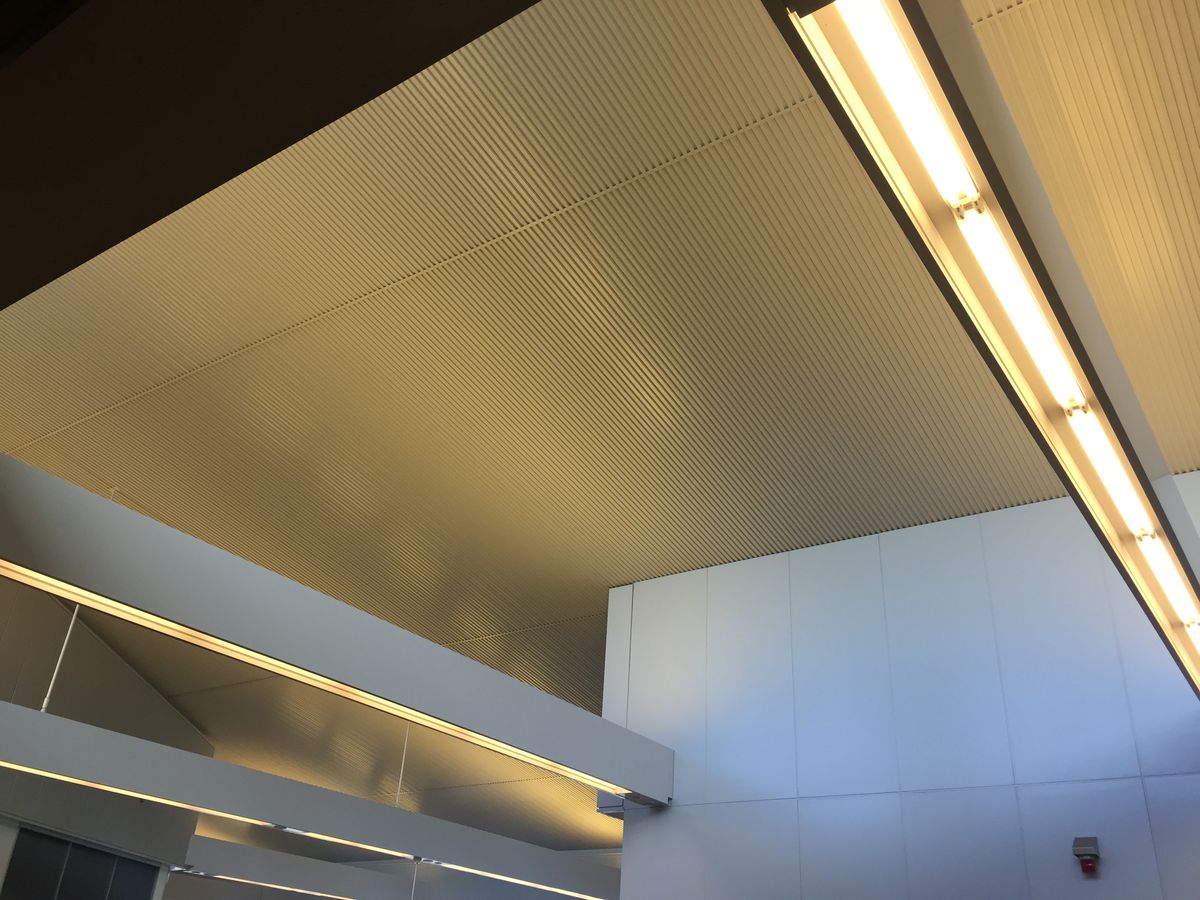

Airport Terminal

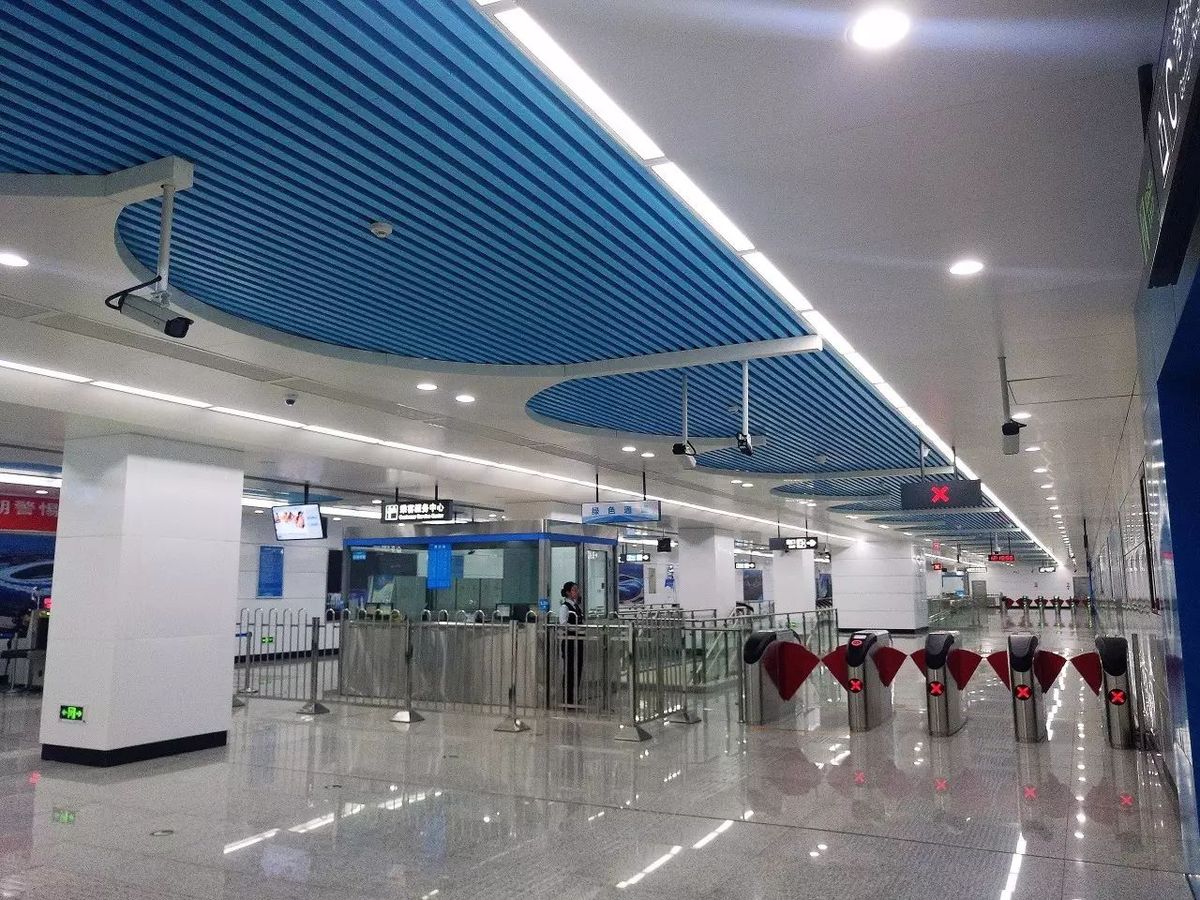

Metro Station

Shopping Mall

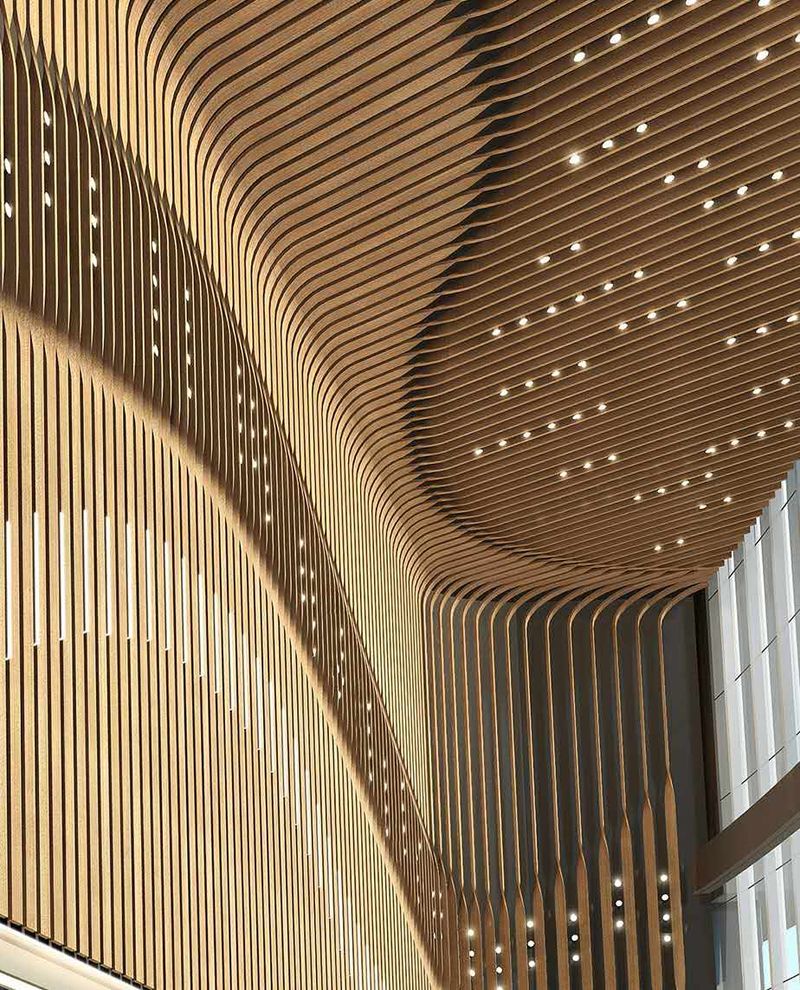

Commercial Building

Downloads

Technical Resources

Download detailed technical documentation for the S-Shape baffle ceiling system.

S-Shape Baffle TDS

PDF - 151 KB

FAQ

Frequently Asked Questions

How does the S-Shape baffle differ from the I-Shape baffle?

The S-Shape baffle uses a snap-fit clip mechanism - blades clip directly onto the dedicated steel keel from below, without needing to thread from the end. The I-Shape baffle slides through the keel and requires end-access. The S-Shape is faster to install in tight spaces. Both share the same blade thickness (0.6-0.7mm), height options (100/150/200mm), and finish range - the choice is based on installation access and visual preference.

Can different blade heights be mixed in the same ceiling?

Yes. This is one of the key design advantages of the S-Shape system. Blades of 100mm, 150mm and 200mm height can be freely combined within a single ceiling plane to create wave, stepped, or graduated visual effects. Each height uses a matching snap-fit keel, so transitions are structurally seamless. Height mixing is specified in the design phase to ensure correct keel selection.

What blade lengths and maximum runs are available?

Standard sizes include 1250×2200mm, 1100×1250mm, and 1000×1700mm. Panel dimensions are fully customizable to match project-specific module layouts. The standard panel thickness is 1.5mm aluminum. Custom dimensions can be accommodated with short lead time adjustments.

What is the typical spacing between blades?

The spacing between adjacent blades is adjustable and typically set equal to the blade height. For example, 150mm blades at 150mm spacing yields a 50% open area. Spacing can be increased for a more open feel or decreased for greater visual density. The dedicated snap-fit baffle keel accommodates adjustable spacing without additional components.

Can the S-Shape baffle system be installed in tight or confined ceiling voids?

Yes - this is a key advantage. Because S-Shape blades clip on from below, there is no need to access the blade ends or slide along the keel. This makes the system ideal for confined ceiling voids, narrow corridors, and areas where end-access is restricted. Each blade is installed independently and can be removed and reinstalled from below without disturbing adjacent blades.

What is the typical lead time and minimum order quantity?

Standard lead time is 15-20 working days from approved shop drawings. Minimum order quantity is typically 200 linear meters per project. Rush orders are available for time-critical projects. Custom finishes or special packaging may extend lead time by 5-7 working days. Contact our sales team for project-specific lead times.

S-Shape Baffle
