Home / Products / Metal Ceilings / Strip Ceiling / 150C

150C Concealed Strip Ceiling

Precision 150mm concealed strip ceiling system with hidden clip mechanism. Delivers a seamless monolithic ceiling plane with no visible fasteners - ideal for premium architectural environments demanding clean, uninterrupted surfaces.

Product Overview

150C Concealed Strip Ceiling

150C Concealed Strip Ceiling Profile

The Ballesta 150C is a 150mm-wide concealed strip ceiling system featuring a hidden clip mechanism that locks panels securely into place with no visible fasteners. This creates a seamless, monolithic ceiling appearance that elevates any architectural space.

Engineered for high-traffic public environments such as airport terminals, metro stations, and commercial lobbies, the 150C combines aesthetic refinement with structural integrity. Panels are manufactured from high-grade aluminum alloy with precision roll-formed edges for consistent joint quality across the entire installation.

Key Advantages

Why Choose 150C?

Clean Monolithic Appearance

Concealed clip system hides all fasteners and support structure. The result is a flawless, uninterrupted ceiling plane with no visible grid lines or fixing points.

Concealed Clip System

Proprietary hidden clip mechanism provides secure panel retention while allowing for individual panel removal. No visible screws, clips, or brackets disrupt the ceiling surface.

Custom Lengths

Panels manufactured to exact project lengths up to 6 meters, minimizing on-site cutting and reducing waste. Continuous runs without visible transverse joints.

Easy Access & Maintenance

Individual panels can be demounted and re-installed without affecting adjacent panels. Full access to ceiling voids for maintenance, cabling, and service work.

Installation Reference

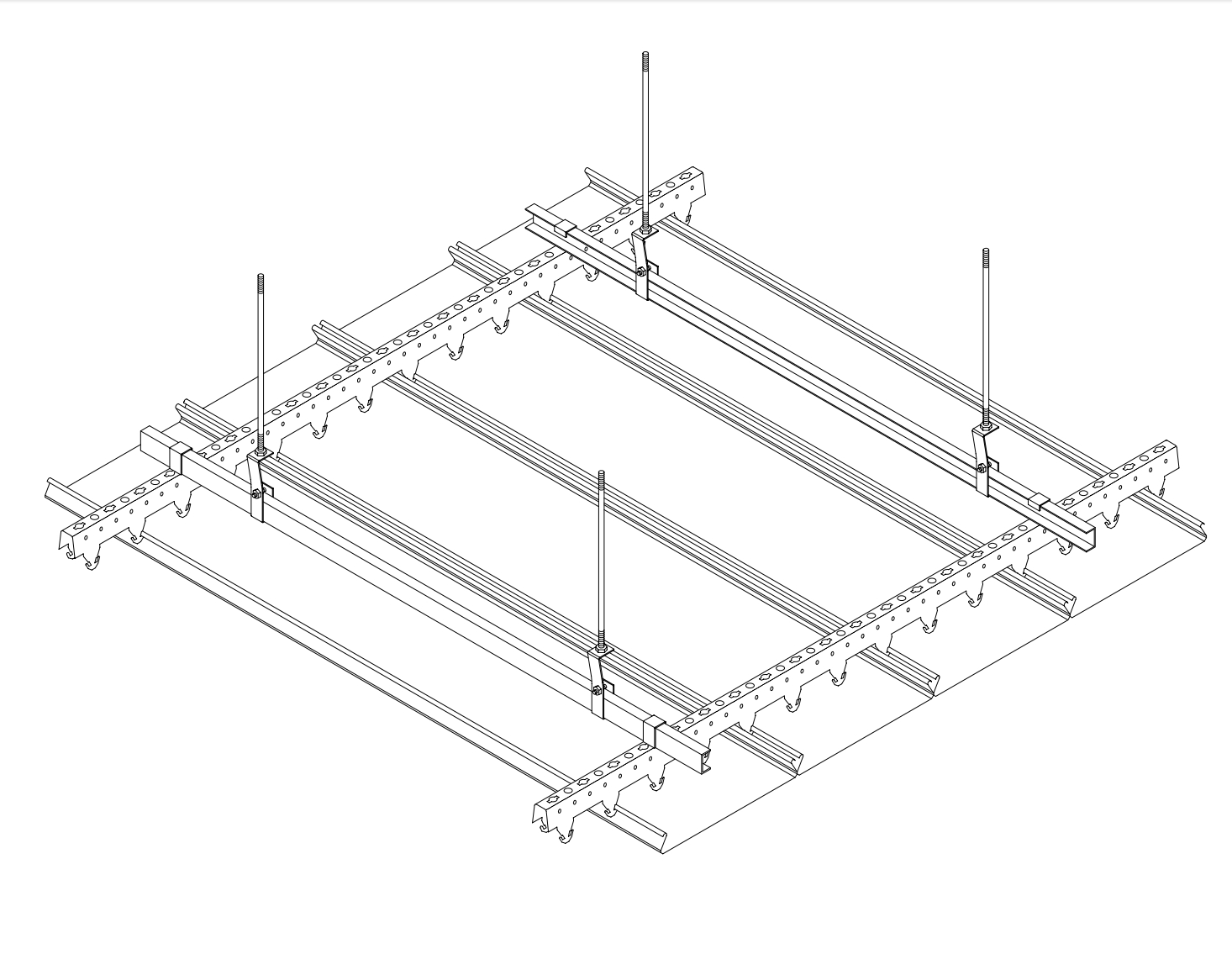

Panel Installation Diagram

150C Concealed Strip Ceiling Installation Diagram
Technical Specifications

150C Specifications

Detailed dimensional and material specifications for the Ballesta 150C concealed strip ceiling.

ParameterSpecification
Model150C
Width150mm
Height15mm
Thickness0.6 - 1.0mm
LengthCustom (up to 6000mm)
MaterialAluminum Alloy AA3003 / AA5005
Joint TypeConcealed clip-in
Edge DetailHook-on / interlock
FinishPVDF, Powder coating, Anodized, Wood grain
Fire RatingClass A (non-combustible, ASTM E84 / BS 476)
Acoustic PerformanceUp to 0.85 NRC with acoustic backing
Key Features

Designed for Performance

Design Aesthetic

Clean concealed joints create a monolithic ceiling surface with no visible grid. The 150mm panel width offers a balanced scale suitable for medium to large spaces, providing visual continuity without overwhelming the architecture.

Easy Installation

Pre-engineered concealed clip system speeds installation. Panels clip securely into supporting tees without special tools. Average installation rates of 40-50 sqm per day per team, reducing overall project timelines.

Low Maintenance

Concealed fixing means no exposed hardware to collect dust or corrode. Panels can be individually removed and replaced for ceiling void access. Powder-coated and PVDF finishes resist staining and are easy to clean.

Custom Options

Available in custom lengths, perforation patterns, acoustic backing, and any RAL or Pantone color. Custom edge detailing available for specialized architectural requirements.

System Components

What's Included

Complete system components for the 150C concealed strip ceiling installation.

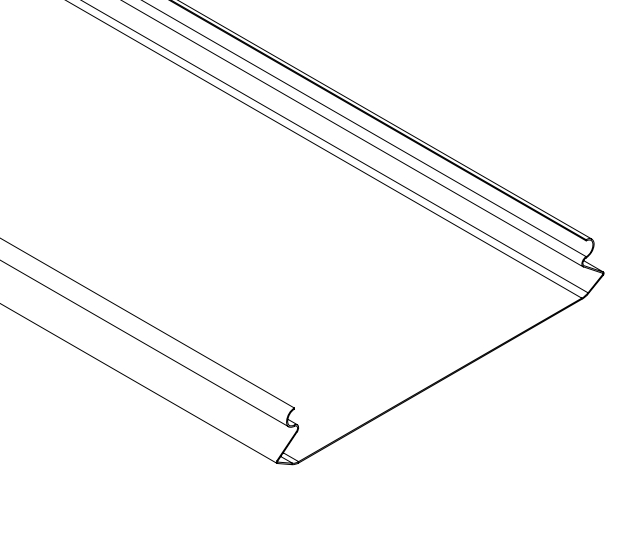

150C Panel
150C Panel

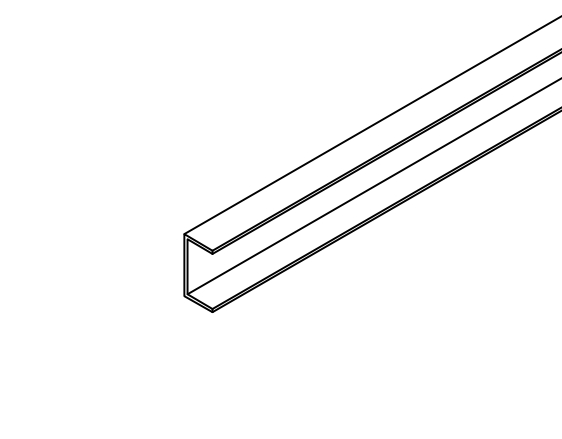

C Channel
C Channel

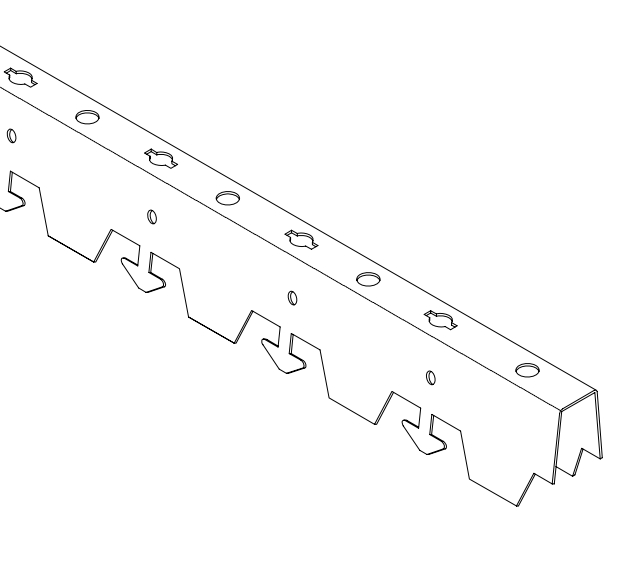

C Type Keel
C Type Keel
Hanger for C Channel
Hanger for C Channel
Hanger for C Type Keel
Hanger for C Type Keel

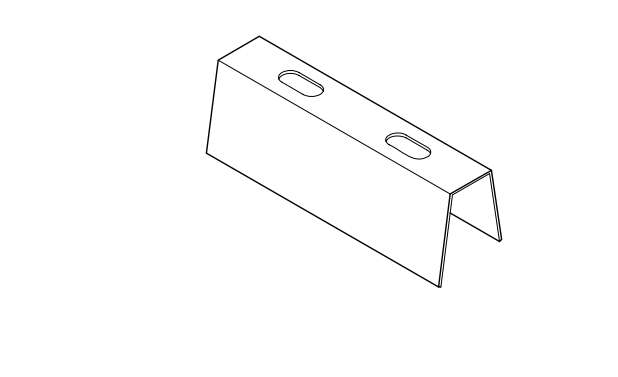

Keel Connector
Keel Connector
Rod
Rod
Installation

Installation Steps

Standard installation sequence for the 150C concealed strip ceiling system.

1

Install Rod & Hanger

Install rod from the ceiling structure, then attach hanger for C Channel to the rod. Ensure secure connection.

2

Install C Channel

Install the C Channel onto the hanger and adjust to level. Verify alignment before proceeding.

3

Install C Type Keel

Use hanger for C Type Keel to suspend the C Type Keel from the C Channel. Adjust to achieve level alignment.

4

Install Panel

Clip the 150C panel into the concealed fixing system. Each panel locks securely into position for a seamless finish.

Applications

Ideal for Any Space

The concealed aesthetic of the 150C makes it ideal for premium public and commercial environments.

Airport Terminals
Metro Stations
Shopping Malls
Office Buildings
Hotel Lobbies
Conference Halls
Available Finishes

Surface Finishes

Choose from a wide range of surface finishes to match your architectural vision.

PVDF Coating

Premium fluorocarbon, 30-year durability

Powder Coating

Economical, wide color range

Anodized

Natural metallic, scratch-resistant

Wood Grain

Realistic wood texture on aluminum

UV Printing

High-definition digital printing

Application Scenarios

150C in Action

Real-world applications of the Ballesta 150C concealed strip ceiling in commercial and public spaces.

150C strip ceiling at airport terminal
Airport Terminal
150C strip ceiling at metro station
Metro Station
150C strip ceiling at shopping mall
Shopping Mall
150C strip ceiling commercial building
Commercial Building
Downloads

Technical Resources

Download detailed technical documentation for the 150C concealed strip ceiling.

Technical Datasheet (TDS)

PDF - 130 KB
FAQ

Frequently Asked Questions

Can the 150C be installed in exterior applications?

The 150C is primarily designed for interior applications. For exterior or semi-exterior use, we recommend specifying a weather-resistant finish (PVDF) and consulting our technical team for project-specific advice on venting and drainage.

What is the maximum panel length for the 150C?

Standard maximum panel length is 6000mm (6 meters) for efficient transport and handling. Custom lengths up to 8000mm are possible for specific projects. We recommend consulting logistics constraints before specifying extra-long panels.

Can the 150C panels be perforated for acoustic performance?

Yes. The 150C panels can be perforated with custom patterns and backed with acoustic fleece or insulation to achieve NRC values up to 0.85. Perforation patterns can be customized to meet specific acoustic requirements.

What is the typical lead time for 150C panels?

Standard lead time is 20-30 working days from approved shop drawings. Custom perforation patterns, specialty finishes, or very large quantities may require 30-45 working days. Rush orders can be accommodated for project-critical timelines.
