84R Round-Edge Strip Ceiling

Elegant 84mm round-edge strip ceiling system with roll-formed rounded profile. The soft, sculpted panel edges create a warm and inviting ceiling aesthetic - perfect for hospitality and retail environments.

Product Overview

84R Round-Edge Strip Ceiling

84R Round-Edge Strip Ceiling Profile

The Ballesta 84R is an 84mm-wide round-edge strip ceiling system featuring roll-formed rounded panel edges. The soft, sculpted profile creates a warm and inviting ceiling aesthetic that distinguishes hospitality, retail, and reception environments from standard grid ceilings.

The open joint design with rounded edges produces delicate shadow lines between panels, adding depth and subtle texture to the ceiling plane. This makes the 84R a popular choice for hotel lobbies, boutique retail stores, premium office receptions, and restaurant interiors where atmosphere matters as much as function.

Key Advantages

Why Choose 84R?

Clean Monolithic Appearance

Roll-formed rounded edges create soft, sculpted panel profiles. The elegant detailing adds visual warmth and sophistication to any interior, distinguishing spaces from standard sharp-edged ceilings.

Round-Edge Profile

Precision roll-formed edge creates consistent rounded profile on every panel. The sculpted edge catches and diffuses light subtly, creating a soft glow that enhances the overall ambiance.

Custom Lengths

Panels manufactured to exact project lengths up to 6 meters. Continuous runs without visible transverse joints maintain the refined aesthetic across large areas.

Easy Access & Maintenance

Individual panels lift out from the supporting grid, providing convenient access to ceiling voids. Durable finishes require minimal maintenance and retain their appearance over time.

Installation Reference

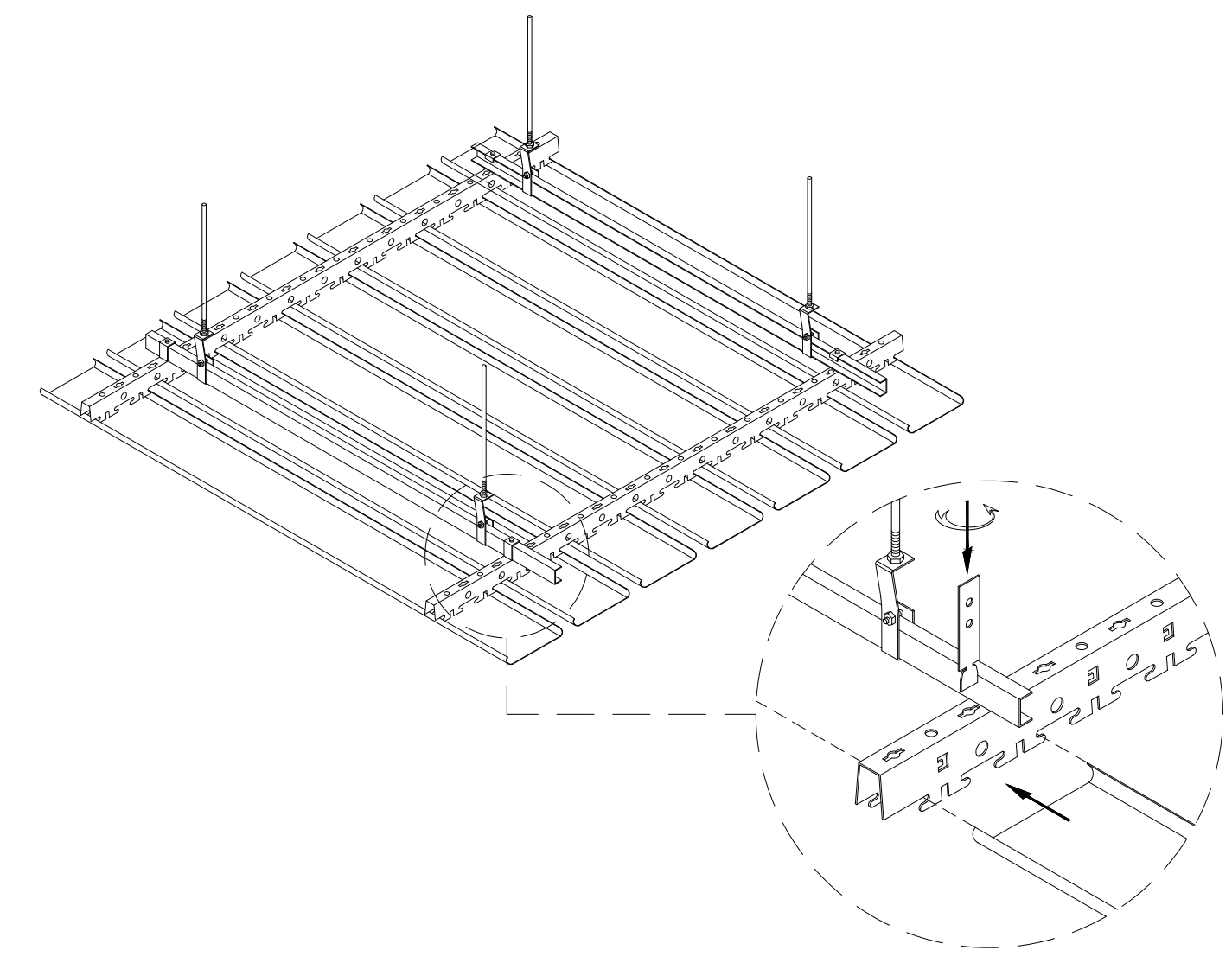

84R Installation Diagram

84R Round-Edge Strip Ceiling Installation Diagram
Technical Specifications

84R Specifications

Detailed dimensional and material specifications for the Ballesta 84R round-edge strip ceiling.

ParameterSpecification
Model84R
Width84mm
Height15mm
Thickness0.6 - 0.8mm
LengthCustom (up to 6000mm)
MaterialAluminum Alloy AA3003 / AA5005
Joint TypeOpen with rounded profile
Edge DetailRoll-formed round
FinishPVDF, Powder coating, Anodized, Wood grain
Fire RatingClass A (non-combustible, ASTM E84 / BS 476)
Acoustic PerformanceUp to 0.75 NRC with acoustic backing
Key Features

Designed for Performance

Design Aesthetic

The 84mm rounded-edge profile delivers a distinctly soft and refined ceiling appearance. The open joints with sculpted edges create gentle shadow transitions that add depth and warmth to any interior space.

Easy Installation

Simple lay-in installation onto standard tee-bar or concealed carrier grid. Lightweight panels are easily handled by a single installer. The rounded edge design does not require special handling or tools.

Low Maintenance

Open joint construction reduces dust accumulation. High-quality finishes resist staining and are easy to maintain. Individual panels can be quickly removed and replaced if damaged.

Custom Options

Available in custom lengths, perforated options, acoustic backing, and any RAL or Pantone color. The refined profile pairs beautifully with wood grain and metallic finishes for premium interiors.

System Components

What's Included

Complete system components for the 80B open joint strip ceiling installation.

84R Panel
84R Panel

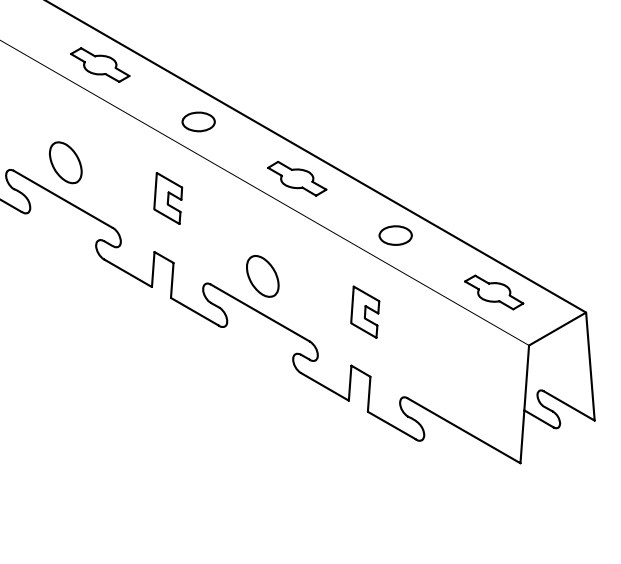

B-type Keel
B-type Keel

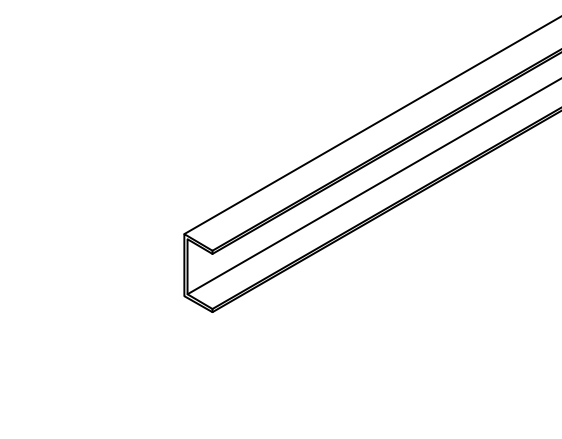

C Channel
C Channel
Hanger for B-type Keel
Hanger for B-type Keel
Hanger for C Channel
Hanger for C Channel

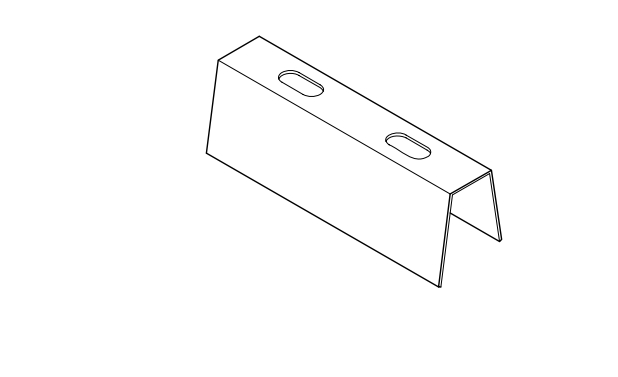

Keel Connector
Keel Connector
Rod
Rod
Installation

Installation Steps

Standard installation sequence for the 84R round-edge strip ceiling system.

1

Install Rod & Hanger

Install rod from the ceiling structure, then attach hanger to the rod. Ensure secure connection.

2

Install Main Tees

Suspend main tees from overhead structure using adjustable hangers. Ensure level and alignment across the entire ceiling area.

3

Install Cross Tees

Connect cross tees to main tees at specified centers to form the carrier grid. Lock connections securely.

4

Install 84R Panel

Slide the 84R panel into the B-type Keel channel from the end. Panels lock securely into the keel slot without additional clips or fasteners.

Application Scenarios

84R in Action

Real-world applications of the Ballesta 84R open joint strip ceiling in commercial and public spaces.

84R strip ceiling at airport terminal
Airport Terminal
84R strip ceiling at metro station
Metro Station
84R strip ceiling at shopping mall
Shopping Mall
84R strip ceiling commercial building
Commercial Building
Available Finishes

Surface Finishes

Choose from a wide range of surface finishes to match your architectural vision.

PVDF Coating

Premium fluorocarbon, 30-year durability

Powder Coating

Economical, wide color range

Anodized

Natural metallic, scratch-resistant

Wood Grain

Realistic wood texture on aluminum

UV Printing

High-definition digital printing

Downloads

Technical Resources

Download detailed technical documentation for the 84R round-edge strip ceiling.

FAQ

Frequently Asked Questions

Can the 84R be combined with lighting systems?

Yes. The 84R system integrates seamlessly with linear lighting, recessed downlights, and suspended fixtures. The open joint allows for flexible light fixture positioning, and custom panel cutouts can be specified for integrated lighting solutions.

Is the rounded edge available in different radii?

The standard 84R features a factory-set roll-formed radius optimized for the 84mm panel width. Custom edge profiles can be developed for large-volume projects. Please consult our technical team to discuss specific edge detailing requirements.

What joint spacing is standard for the 84R?

Standard open joint spacing is approximately 15mm between panels. This creates the characteristic shadow gap that enhances the rounded edge appearance. Custom joint spacing is available for projects with specific design requirements.

What is the typical lead time for 84R panels?

Standard lead time is 15-25 working days from approved shop drawings. The 84R's refined profile requires precise roll-forming, which may add 3-5 days compared to standard flat profiles. Rush orders can be accommodated.
